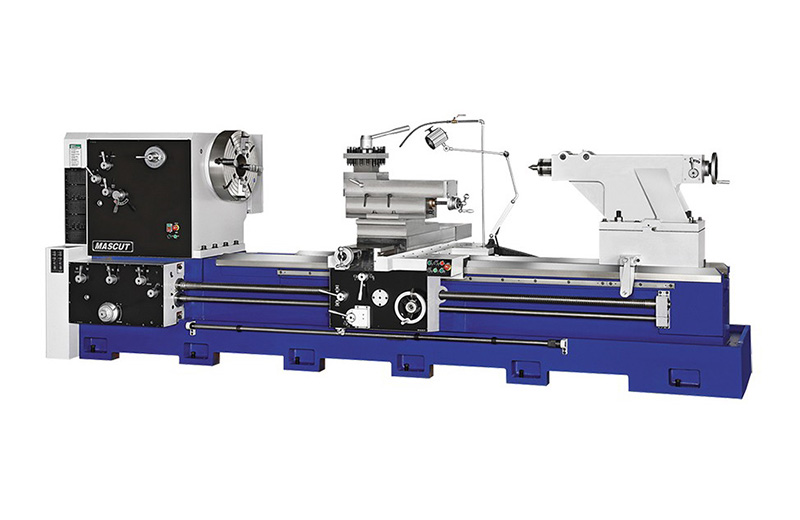

．The contact surfaces between the cross slide and the saddle are designed with box way, which provides grenter contact surface.
．This permits heavier cutting capacity, and is also ideal for larger pitch threading.
．Bed ways are hardened and precision ground to achieve excellent wear-resistance without deformation.
．With the large span between bedways and the ruggedly constructed bed and base, our lathe features maximum rigidity and stability to perform large workpiece madining.
．Bed ways are hardened and precision ground to achieve excellent wear-resistance without deformation.
INVERTER COMTROLLED TYPE
．Better performance than conventional lathes.
．3-step speeds, each in variable speed change.
．Speed change by auto shifting.
．More convenient turning processing control & spindle speed shown on rpm meter.
．Braking controlled by quick inverter stop.
．Through cross feeding at fixed spindle speed, you´ll get the fine accuracy & speed for slide face of round plate (similar to CSS function).
．Through cross feeding for step turning, the spindle speed change can match and achieve rapid effect.
|
Description\MODEL |
Unit |
MA-S4260(i) |
MA-S4280(i) |
MA-S42120(i) |
MA-S42160(i) |
MA-S42200(i) |
MA-S42240(i) |
MA-S42280(i) |
|
|
CAPACITY |
|
|
|||||||
|
Swing over bed |
mm |
1070 |
|||||||
|
Swing over gap |
mm |
1520 |
|||||||
|
Swing over cross slide |
mm |
744 |
|||||||
|
Distance between center |
mm |
1700 |
2200 |
3200 |
4200 |
5200 |
6200 |
7200 |
|
|
Bed width |
mm |
625 |
|||||||
|
SPINDLE |
|
|
|||||||
|
Spindle bore |
mm |
Ø155 (6”) |
Ø230(9”) opt. |
||||||
|
Spindle nose |
- |
A2-11 |
A2-15 |
||||||
|
Spindle speeds 18 steps |
rpm |
5~615 |
4~430 |
||||||
|
Inverter type (variable 3 steps) |
7~710 |
6~500 |
|||||||
|
TRAVEL |
|
|
|||||||
|
Gross slide travel |
mm |
700 |
|||||||
|
Compound rest travel |
mm |
380 |
|||||||
|
TAILSTOCK |
|
|
|||||||
|
Tailstock spindle dia. |
mm |
165 |
|||||||
|
Tailstock spindle taper |
- |
MT#6 |
|||||||
|
MOTOR |
|
|
|||||||
|
Main spindle motor |
HP |
20 / 25 or 30 (opt.) |
|||||||
Note : We have the right to modify the specification or designs. If there are subjected to change without prior notice.
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Gap bed |
|
|
l 4-way tool post |
l 3-Jaw scroll chuck |
|
|
l Tailstock |
l 4-jaw independent chuck |
|
|
l Electromagnetic brakes |
l Double chuck |
|
|
l X / Z-axis rapid travel |
l Face plate |
|
|
l Center sleeve |
l Work light |
|
|
l Dead center |
l Quick change tool post |
|
|
l Tool box & tools |
l Steady rest |
|
|
l Operation & Service Manual |
l Follow rest |
|
|
|
l Taper attachment |
|
|
|
l Micro-meter bed stopper |
|
|
|
l Turret type 5-position bed stopper |
|
|
|
l Digital Readout System |
|
|
|
l Full length splash guard |
|
|
|
l Moving rear splash guard |
|
|
|
l Chuck guard |
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Rotating center |
