Description\MODEL |
Unit |
AC-2540 |
AC-2560 |
AC-2580 |
|
CAPACITY |
|
|
||
|
Center height |
mm |
315 |
||
|
Swing over bed |
mm |
630 |
||
|
Swing over gap |
mm |
810 (opt.) |
||
|
Swing over cross slide |
mm |
400 |
||
|
Dist. between center |
mm |
1000 |
1500 |
2000 |
|
Bed width |
|
350mm |
||
|
SPINDLE |
|
|
||
|
Spindle bore |
mm |
Ø85 (3”) |
Ø105 (4”) (opt.) |
Ø155 (6”) (opt.) |
|
Spindle nose |
- |
D1-8 |
A1-11 |
A2-11 |
|
Spindle speeds |
rpm |
H : 491~2250 M : 126~490 L : 27~125 |
H : 331~1500 M : 93~330 L : 20~92 |
H : 176~800 M : 53~175 L : 10~52 |
|
TRAVEL |
|
|
||
|
Cross slide travel X-axis |
mm |
350 |
||
|
Longitudinal travel Z-axis |
mm |
810 |
1310 |
1810 |
|
Ball screw ( Dia. x pitch) |
|
X: Φ25 x P5 Z: Φ40 x P10 |
||
|
FEED RATE |
|
|
||
|
X-axis rapid travel |
M/min |
5 |
||
|
Z-axis rapid travel |
M/min |
7 |
||
|
TAILSTOCK |
|
|
||
|
Quill dia. |
mm |
Ø75 |
||
|
Quill travel |
mm |
170 |
||
|
Quill inside taper |
- |
MT# 5 |
||
|
MOTOR |
|
|
||
|
Spindle motor |
HP |
10 / 15 (opt.) |
||
|
X-axis drive motor |
Nm |
6.3 |
||
|
Z-axis drive motor |
Nm |
6.3 |
||
|
Coolant pump motor |
HP |
1/6 |
||
|
WEIGHT |
|
|
||
|
Net weight |
kg |
3200 |
3500 |
3800 |
Note :
We have the right to modify the specifications or designs. if there are subjected to change, without
prior notice.

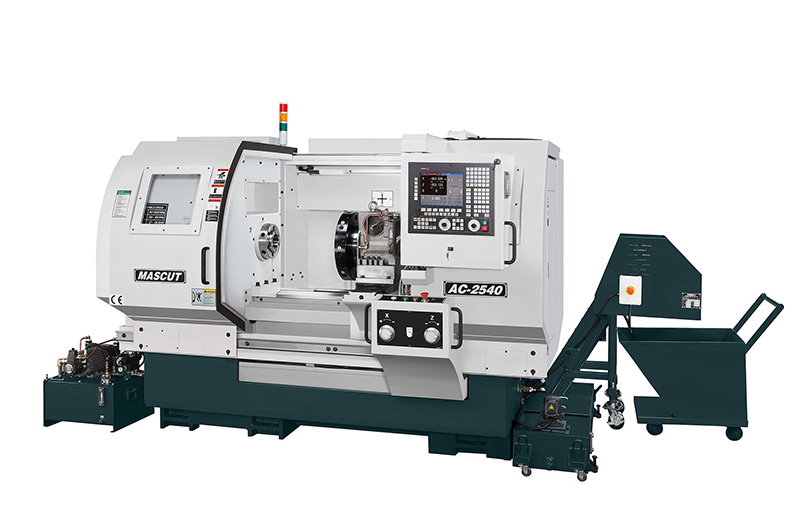

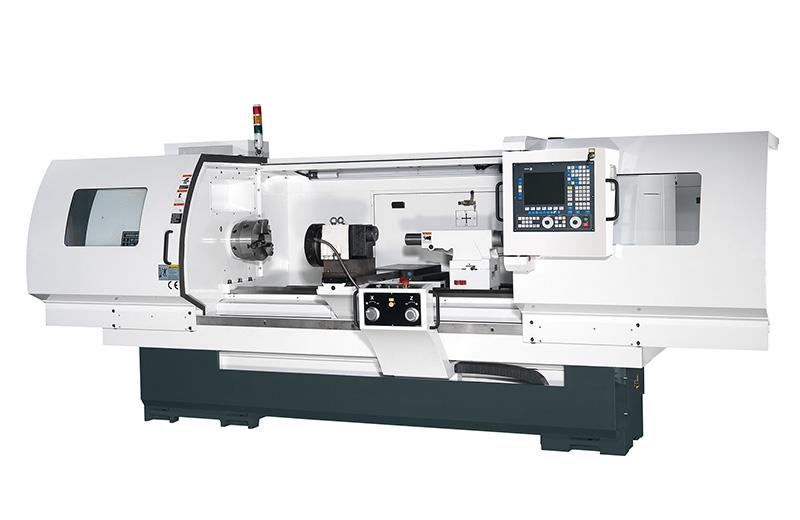

AC-2500 Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Fagor control |
l Fanuc & Siemens Control on request |
|
|
l Main spindle 2 steps speed auto Change |
l 3-Jaw manual chuck |
|
|
l by CNC Control |
l 4-Jaw manual chuck |
|
|
l Coolant equipment |
l 3-Jaw hydraulic chuck |
|
|
l Lubricate equipment |
l Manual toolpost (4T) |
|
|
l Work light |
l Electric servo toolpost (H4) |
|
|
l Center sleeve |
l Electric turret (V8) |
|
|
l Dead center |
l Hydraulic turret (V8) |
|
|
l Tool box & tools |
l C axis (Living tool) |
|
|
l Operation & Service Manual |
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Boring attachment |
|
|
|
l Double chuck system |
|
|
|
l Rotating center |
|
|
|
l Hydraulic tailstock |
|
|
|
l Chip conveyer |
|
|
|
l Heat exchanger |
|
|
|
l Spindle oil cooler |
|
|
|
l Tailstock type : Build in type quill |
|
|
|
|
l Fanuc & Siemens Control on request |
