Description\MODEL |
Unit |
AC-2660 |
AC-2680 |
AC-26120 |
AC-26160 |
AC-26200 |
||
|
CAPACITY |
|
|
||||||
|
Center height |
mm |
335 |
||||||
|
Swing over bed |
mm |
670 |
||||||
|
Swing over gap |
mm |
880 (opt.) |
||||||
|
Swing over cross slide |
mm |
400 |
||||||
|
Dist. Between center |
mm |
1600 |
2100 |
3100 |
4100 |
5100 |
||
|
Bed width |
mm |
450 |
||||||
|
SPINDLE |
|
|
||||||
|
Spindle bore |
mm |
Ø85 (3") |
||||||
|
Spindle nose |
- |
D1-8 |
||||||
|
Spindle speeds |
rpm |
H: 491~2250 M: 126~490 L: 27~125 |
||||||
|
TRAVEL |
|
|
||||||
|
Cross slide travel X-axis |
mm |
450 |
||||||
|
Longitudinal travel Z-axis |
mm |
1500 |
2000 |
3000 |
4000 |
5000 |
||
|
Ball screw ( Dia. x pitch) |
mm |
X: Φ28 x P5 |
||||||
|
Z: Φ50 x P10 |
Φ63 x P12 |
|||||||
|
FEED RATE |
|
|
||||||
|
X-axis rapid travel |
M/min |
5 |
||||||
|
Z-axis rapid travel |
M/min |
7 |
6 |
|||||
|
TAILSTOCK |
|
|
||||||
|
Quill dia. |
mm |
Ø105 |
||||||
|
Quill travel |
mm |
220 |
||||||
|
Quill inside taper |
- |
MT#5 |
||||||
|
MOTOR |
|
|
||||||
|
Spindle motor |
HP |
15 / 20 (opt) |
||||||
|
X-axis drive motor |
Nm |
6.3 |
||||||
|
Z-axis drive motor |
Nm |
11.6 |
||||||
|
Coolant pump motor |
HP |
1/4 |
||||||
|
WEIGHT |
|
|
||||||
|
Net weight |
kg |
4100 |
4600 |
5600 |
6600 |
7600 |
||
Note:
We have the right to modify the specifications or designs. if there are subjected to change, without
prior notice.

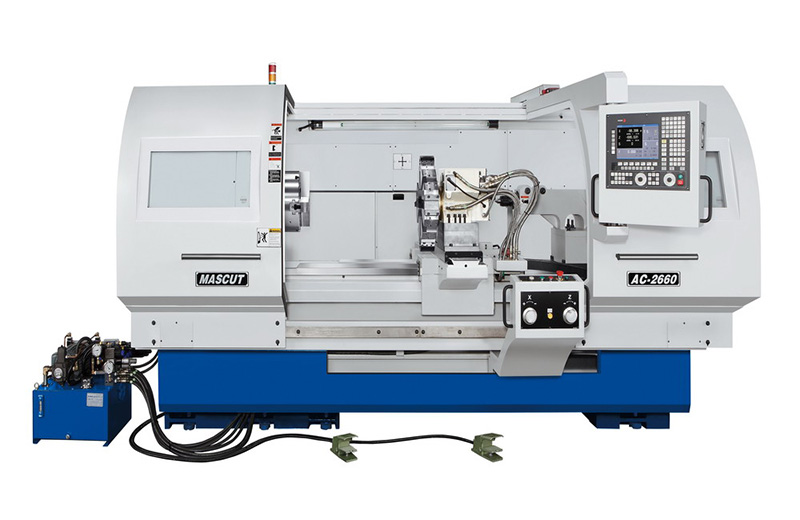

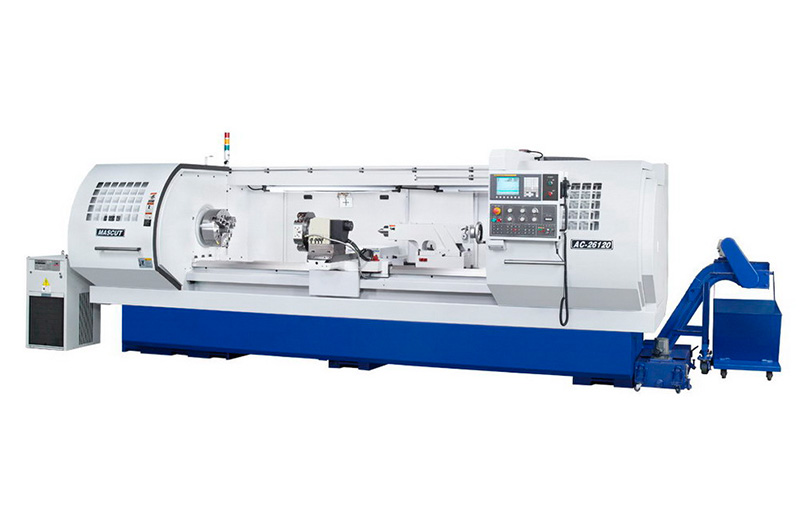

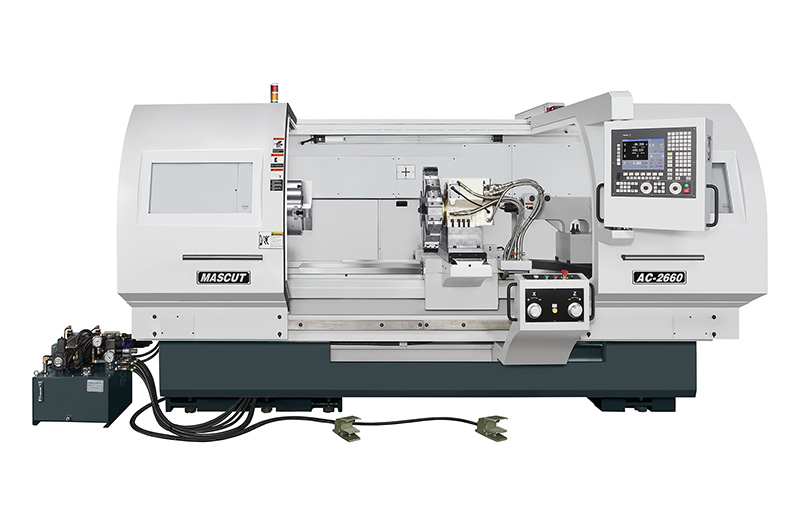

AC-2600 Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Fagor control |
l Fanuc & Siemens Control on request |
|
|
l Main spindle 2 steps speed auto Change |
l 3-Jaw manual chuck |
|
|
l by CNC Control |
l 4-Jaw manual chuck |
|
|
l Coolant equipment |
l 3-Jaw hydraulic chuck |
|
|
l Lubricate equipment |
l Manual toolpost (4T) |
|
|
l Work light |
l Electric servo toolpost (H4) |
|
|
l Center sleeve |
l Electric turret (V8) |
|
|
l Dead center |
l Hydraulic turret (V8) |
|
|
l Tool box & tools |
l C axis (Living tool) |
|
|
l Operation & Service Manual |
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Boring attachment |
|
|
|
l Double chuck system |
|
|
|
l Rotating center |
|
|
|
l Hydraulic tailstock |
|
|
|
l Rotating tailstock |
|
|
|
l Chip conveyer |
|
|
|
l Heat exchanger |
|
|
|
l Spindle oil cooler |
|
|
|
|
l Tailstock type : Build in type quill |
