MODEL |
Unit |
AC-S5060 |
AC-S5080 |
AC-S50120 |
AC-S50160 |
AC-S50200 |
AC-S50240 |
AC-S50280 |
AC-S50320 |
||||
|
CAPACITY |
|
|
|||||||||||
|
Center height |
mm |
665 |
|||||||||||
|
Swing over bed |
mm |
1270 |
|||||||||||
|
Swing over cross slide |
mm |
944 |
|||||||||||
|
Dist. between center |
mm |
1700 |
2200 |
3200 |
4200 |
5200 |
6200 |
7200 |
8200 |
||||
|
Width of bed |
mm |
625 |
|||||||||||
|
SPINDLE |
|
|
|||||||||||
|
Spindle bore |
- |
Ø155(6") |
Ø230(9")opt. |
Ø305(12") opt. |
Ø410(16") opt. |
Large spindle bores are available on request |
|||||||
|
Spindle nose |
- |
A2-11 |
A2-15 |
A2-20 |
A2-28 |
||||||||
|
Spindle speeds |
rpm |
H: 161~800 M: 33~160 L: 6~32 |
H: 111~560 M: 21~110 L: 4~20 |
H: 54~270 M: 11~53 L: 2~10 |
H: 43~215 M: 9~42 L: 1.5~8 |
||||||||
|
TRAVEL |
|
|
|||||||||||
|
Cross slide travel X-axis |
mm |
680 |
|||||||||||
|
Longitudinal travel Z-axis |
mm |
1600 |
2100 |
3100 |
4100 |
5100 |
6100 |
7100 |
8100 |
||||
|
Ball screw ( Dia. x pitch) |
mm |
X: Φ40 x P8 Z: Φ80 x P16 |
|||||||||||
|
FEED RATE |
|
|
|||||||||||
|
X-axis rapid travel |
M/min |
5 |
|||||||||||
|
Z-axis rapid travel |
M/min |
5 |
|||||||||||
|
TAILSTOCK |
|
|
|||||||||||
|
Spindle dia. |
mm |
Ø165 |
|||||||||||
|
Spindle travel |
mm |
300 |
|||||||||||
|
Taper in spindle |
- |
MT#6 |
|||||||||||
|
MOTOR |
|
|
|||||||||||
|
Servo motor |
kw |
22 / 33 |
|||||||||||
|
X-axis drive motor |
Nm |
23.5 |
|||||||||||
|
Z-axis drive motor |
Nm |
32 |
|||||||||||
|
Coolant pump motor |
Bar |
4.3 (50HZ) / 6 (60HZ) |
|||||||||||
|
WEIGHT |
|
|
|||||||||||
|
Net weight |
kg |
10600 |
11400 |
13000 |
14600 |
16200 |
17800 |
19400 |
21000 |
||||
Note:
We have the right to modify the specification or designs. If there are subjected to change
without prior notice.

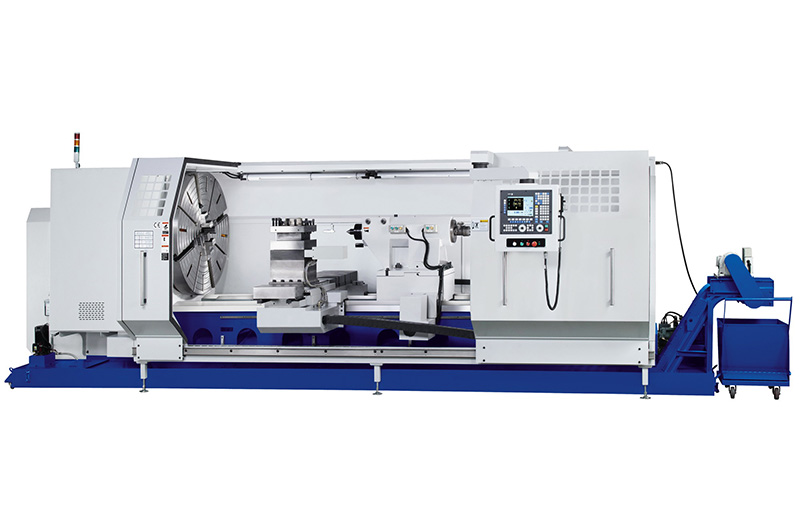

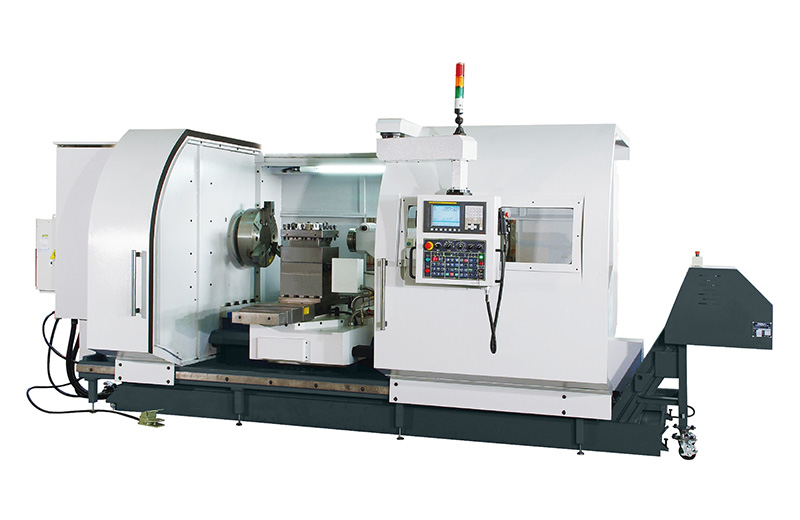

AC-S5000 Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Fagor control |
l Fanuc & Siemens Control on request |
|
|
l Main spindle 2 steps speed auto Change by |
l 3-Jaw manual chuck |
|
|
l CNC Control |
l 4-Jaw manual chuck |
|
|
l Coolant equipment |
l 3-Jaw hydraulic chuck |
|
|
l Lubricate equipment |
l Manual toolpost (4T) |
|
|
l Work light |
l Electric servo toolpost (H4) |
|
|
l Center sleeve |
l Electric turret (V8) |
|
|
l Dead center |
l Hydraulic turret (V8) |
|
|
l Tool box & tools |
l C axis (Living tool) |
|
|
l Operation & Service Manual |
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Boring attachment |
|
|
|
l Double chuck system |
|
|
|
l Rotating center |
|
|
|
l Hydraulic tailstock |
|
|
|
l Rotating tailstock |
|
|
|
l Chip conveyer |
|
|
|
l Heat exchanger |
|
|
|
l Spindle oil cooler |
|
|
|
|
l Tailstock type : Build in type quill |
