Description\MODEL |
Unit |
MA-1720(i) |
MA-1730(i) |
MA-1740(i) |
|
CAPACITY |
|
|||
|
Center height |
mm |
230 |
||
|
Swing over bed |
mm |
460 |
||
|
Swing over gap |
mm |
630 (opt.) |
||
|
Swing over cross slide |
mm |
285 |
||
|
Distance between center |
mm |
550 |
750 |
1000 |
|
Bed width |
mm |
300 |
||
|
SPINDLE |
|
|||
|
Spindle bore |
mm |
58 (2") |
||
|
Spindle nose |
- |
A1-6 |
||
|
Spindle speeds 12 steps |
rpm |
20~2000 |
||
|
Inverter type (Variable speeds) |
H : 271~2800 L: 55~270 |
|||
|
TRAVEL |
|
|||
|
Gross slide travel |
mm |
250 |
||
|
Compound rest travel |
mm |
120 |
||
|
TAILSTOCK |
|
|||
|
Tailstock spindle dia. |
mm |
58 |
||
|
Tailstock spindle travel |
mm |
150 |
||
|
Tailstock spindle taper |
- |
MT#4 |
||
|
THREADS |
|
|||
|
Lead screw |
- |
4 TPI or 6 mm / pitch Ø35 |
||
|
Metric pitch threads |
- |
0.5 - 7 mm / pitch (24 kinds) |
||
|
Inch pitch threads |
- |
4 - 56 TPI (36 kinds) |
||
|
Module pitch threads |
- |
0.25 – 3.5 M (28 kinds) |
||
|
DP threads |
- |
8 - 112 P (36 kinds) |
||
|
FEEDING RANGE |
|
|||
|
Range of longitudinal feeds |
mm/rev. |
0.05 – 0.88 |
||
|
Range of cross feeds |
mm/rev. |
0.02 - 0.44 |
||
|
MOTOR |
|
|||
|
Main spindle motor |
HP |
5 |
||
|
Coolant pump motor |
HP |
1/8 |
||
|
WEIGHT |
|
|||
|
Net Weight |
kg |
1550 |
1650 |
1800 |
Note:
We have the right to modify the specification or designs. If there are subjected to change without
prior notice.

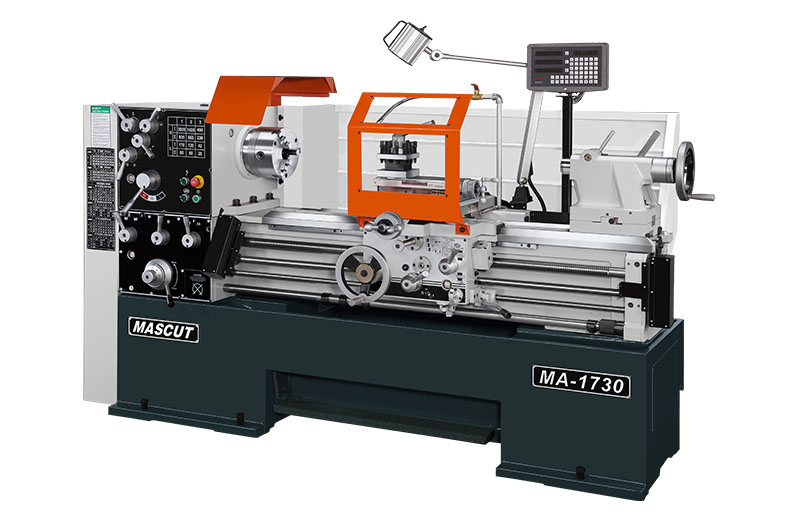

MA-1700(i) Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Gap bed |
|
|
l 4-way tool post |
l 3-Jaw scroll chuck |
|
|
l Tail stock |
l 4-jaw independent chuck |
|
|
l Center sleeve |
l Face plate |
|
|
l Dead Center |
l Quick change tool post |
|
|
l Tool box & tools |
l Work light |
|
|
l Independent Electrical Box |
l Taper attachment |
|
|
l Operation & Service Manual |
l Steady rest |
|
|
|
l Follow rest |
|
|
|
|
