Description\MODEL |
Unit |
MA-2140(i) |

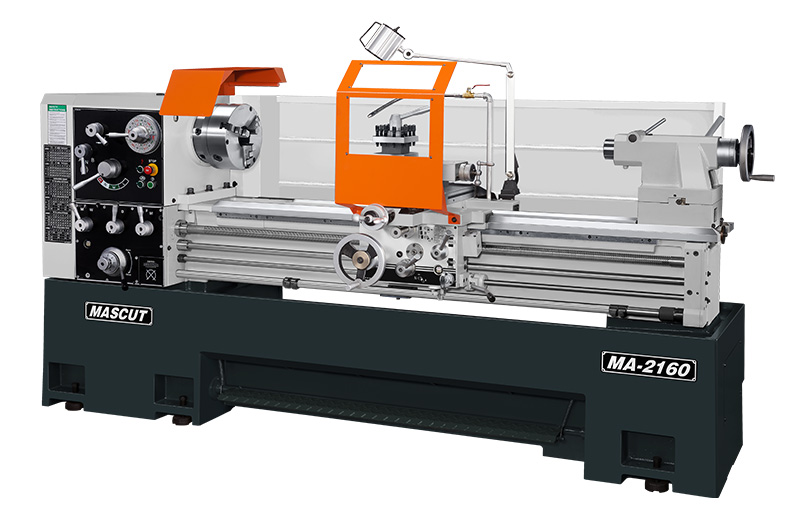

MA-2160(i) |
MA-2180(i) |

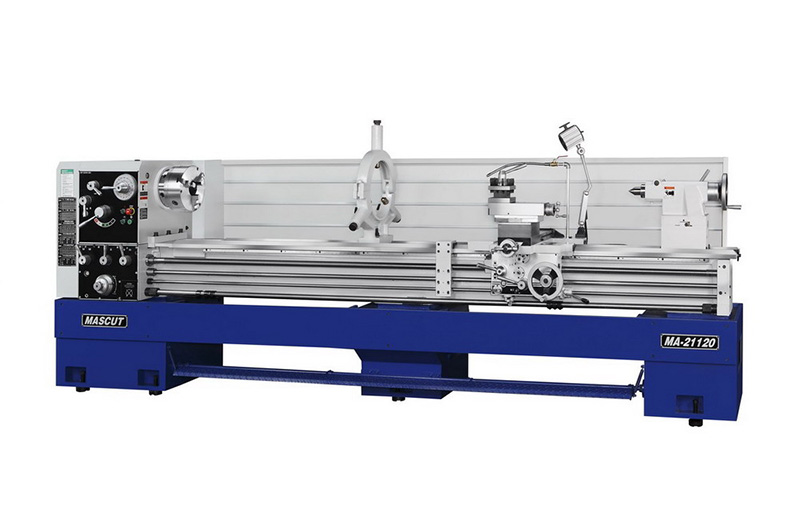

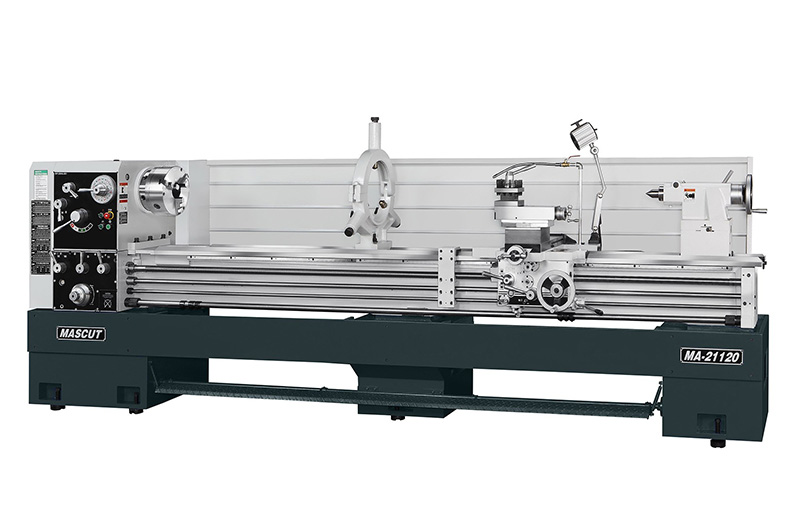

MA-21120(i) |
|
CAPACITY |
|
|
|||
|
Center height |
mm |
270 |
|||
|
Swing over bed |
mm |
540 |
|||
|
Swing over gap |
mm |
720 (opt.) |
|||
|
Swing over cross slide |
mm |
360 |
|||
|
Distance between center |
mm |
1000 |
1500 |
2000 |
3000 |
|
Bed width |
mm |
350 |
|||
|
SPINDLE |
|
|
|||
|
Spindle bore |
mm |
Ø85 (3”) |
Ø105 (4”)opt. |
||
|
Spindle nose |
- |
D1-8 |
A1-11 |
||
|
Spindle speeds 18 steps |
rpm |
25~1545 |
23~1293 |
||
|
Inverter type (Variable speeds) |
H: 491~2250 M: 126~490 L: 27~125 |
H:331~1500 M: 93~330 L: 20~92 |
|||
|
TRAVEL |
|
|
|||
|
Gross slide travel |
mm |
330 |
|||
|
Compound rest travel |
mm |
130 |
|||
|
TAILSTOCK |
|
|
|||
|
Tailstock spindle dia. |
mm |
75 |
|||
|
Tailstock spindle travel |
mm |
170 |
|||
|
Tailstock spindle taper |
- |
MT#5 |
|||
|
THREADS |
|
|
|||
|
Lead screw |
- |
4 TPI or 6 mm/pitch Ø35 |
|||
|
Metric pitch threads |
- |
0.5 - 7 mm/pitch (24 kinds) |
|||
|
Inch pitch threads |
- |
4 - 56 TPI (36 kinds) |
|||
|
Module pitch threads |
- |
0.25 - 3.5 M (16 kinds) |
|||
|
DP threads |
- |
8 - 112 P (36 kinds) |
|||
|
FEEDING RANGE |
|
|
|||
|
Range of longitudinal feeds |
mm/rev. |
0.06 - 0.88 |
|||
|
Range of cross feeds |
mm/rev. |
0.03 - 0.44 |
|||
|
MOTOR |
|
|
|||
|
Main spindle motor |
HP |
10 / 15 (opt.) |
|||
|
Coolant pump motor |
HP |
1/8 |
|||
|
WEIGHT |
|
|
|||
|
Net Weight Approx. |
kg |
2200 |
2450 |
2600 |
2700 |
Note:
We have the right to modify the specification or designs. If there are subjected to change without
prior notice.
MA-2100(i) Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Electromagnetic brakes |
|
|
l 4-way tool post |
l Gap bed |
|
|
l Tail stock |
l Z-axis rapid travel |
|
|
l Center sleeve |
l Digital Readout System |
|
|
l Dead Center |
l 3-Jaw scroll chuck |
|
|
l Tool box & tools |
l 4-jaw independent chuck |
|
|
l Independent Electrical Box |
l Double chuck system |
|
|
l Operation & Service Manual |
l Rear chuck adaptor |
|
|
|
l Face plate |
|
|
|
l Quick change tool post |
|
|
|
|
l Taper attachment |
|
|
|
l Full length splash guard |
|
|
|
l Chuck guard |
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Work light |
|
|
|
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Micro-meter bed stopper |
|
|
|
l Turret type 5-position bed stopper |
|
|
|
l Rotating center |
