Description\MODEL |
Unit |
MA-S4260(i) |
MA-S4280(i) |
MA-S42120(i) |
MA-S42160(i) |
MA-S42200(i) |
MA-S42240(i) |
MA-S42280(i) |
||
|
CAPACITY |
|
|
||||||||
|
Center height |
mm |
565 |
||||||||
|
Swing over bed |
mm |
1070 |
||||||||
|
Swing over gap |
mm |
1520 |
||||||||
|
Swing over cross slide |
mm |
744 |
||||||||
|
Distance between center |
mm |
1700 |
2200 |
3200 |
4200 |
5200 |
6200 |
7200 |
||
|
Bed width |
mm |
625 |
||||||||
|
SPINDLE |
|
|
||||||||
|
Spindle bore |
mm |
Ø155 (6”) |
Ø230(9”) opt. |
Large spindle bores are available on request |
||||||
|
Spindle nose |
- |
A2-11 |
A2-15 |
|||||||
|
Spindle speeds 18 steps |
rpm |
5~615 |
4~430 |
|||||||
|
Inverter type (Variable speeds) |
H: 188~710 M: 40~187 L: 7~39 |
H: 116~500 M: 31~115 L: 6~30 |
||||||||
|
TRAVEL |
|
|
||||||||
|
Gross slide travel |
mm |
700 |
||||||||
|
Compound rest travel |
mm |
380 |
||||||||
|
TAILSTOCK |
|
|
||||||||
|
Tailstock spindle dia. |
mm |
165 |
||||||||
|
Tailstock spindle travel |
mm |
300 |
||||||||
|
Tailstock spindle taper |
- |
MT#6 |
||||||||
|
THREADS |
|
|
||||||||
|
Lead screw |
- |
2 TPI or 12 mm/pitch Ø55 |
||||||||
|
Metric pitch threads |
- |
1 - 30 mm / pitch (43 kinds) |
||||||||
|
Inch pitch threads |
|
30 - 1 TPI |
||||||||
|
Module pitch threads |
- |
0.5 - 15 M |
||||||||
|
DP threads |
- |
60 - 2 TPI |
||||||||
|
FEEDING RANGE |
|
|
||||||||
|
Range of longitudinal feeds |
mm/rev. |
0.07 – 2.03 |
||||||||
|
Range of cross feeds |
mm/rev. |
0.028 - 0.81 |
||||||||
|
MOTOR |
|
|
||||||||
|
Main spindle motor |
HP |
20 / 25 / 30 (opt.) |
||||||||
|
Coolant pump motor |
HP |
1/4 |
||||||||
|
WEIGHT |
|
|
||||||||
|
Net Weight |
kg |
6600 |
7000 |
7800 |
8600 |
9200 |
10000 |
10800 |
||
Note:
We have the right to modify the specification or designs. If there are subjected to change without
prior notice.

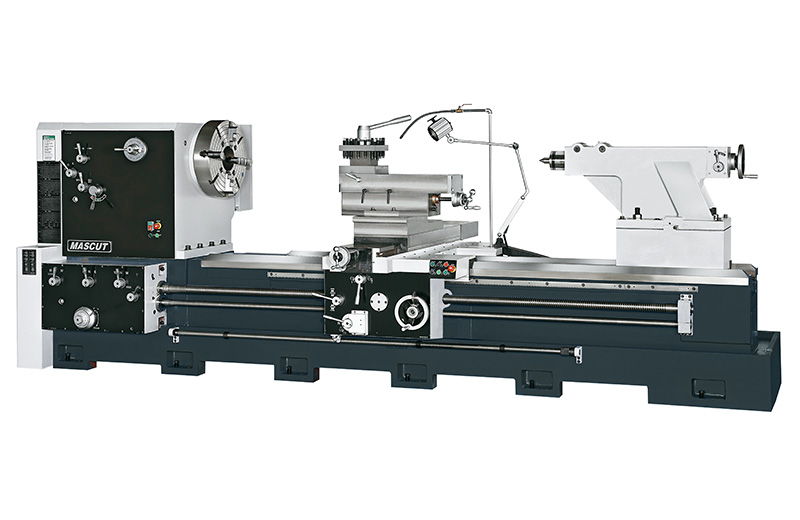

MA-S4200(i) Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Gap bed |
|
|
l Magnetic brake for spindle motor |
l Digital Readout System |
|
|
l 4-way tool post |
l 3-Jaw scroll chuck |
|
|
l Six position rapid travel (including compound tool post) |
l 4-jaw independent chuck |
|
|
l Tail stock |
l Double chuck system |
|
|
l Center sleeve |
l Rear chuck adaptor |
|
|
l Dead center |
l Face plate type 4-jaw chuck |
|
|
l Tool box & tools |
l Taper attachment |
|
|
l Independent Electrical Box |
l Moving rear splash guard |
|
|
l Operation & Service Manual |
l Chuck guard |
|
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Work light |
|
|
|
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Rotating center |
|
|
|
l Grinding attachment |
|
|
|
l Tailstock type (Build in type quill) |
