Description\MODEL |
Unit |
MA-3060(i) |
MA-3080(i) |
MA-30120(i) |
MA-30160(i) |
MA-30200(i) |
MA-30240(i) |
|
CAPACITY |
|
|
|
|
|
|
|
|
Center height |
mm |
385 |
|||||
|
Swing over bed |
mm |
770 |
|||||
|
Swing over gap |
mm |
1010 (opt.) |
|||||
|
Swing over cross slide |
mm |
520 |
|||||
|
Distance between center |
mm |
1600 |
2100 |
3100 |
4100 |
5100 |
6100 |
|
Bed width |
mm |
450 |
|||||
|
SPINDLE |
|
|
|||||
|
Spindle bore |
mm |
Ø105(4”) |
Ø155 (6”)opt. |
||||
|
Spindle nose |
- |
A1-11 |
A2-11 |
||||
|
Spindle speeds 18 steps |
rpm |
23~1293 |
13~690 |
||||
|
Inverter type (Variable speeds) |
H: 331~1500 M: 93~330 L: 20~92 |
H: 176~800 M: 53~175 L: 10~52 |
|||||
|
TRAVEL |
|
|
|||||
|
Gross slide travel |
mm |
450 |
|||||
|
Compound rest travel |
mm |
250 |
|||||
|
TAILSTOCK |
|
|
|||||
|
Tailstock spindle dia. |
mm |
105 |
|||||
|
Tailstock spindle travel |
mm |
220 |
|||||
|
Tailstock spindle taper |
- |
MT#5 |
|||||
|
THREADS |
|
|
|||||
|
Lead screw |
- |
2 TPI or 12 mm/pitch Ø45 |
|||||
|
Metric pitch threads |
- |
0.8 - 14 mm/pitch (65 kinds) |
|||||
|
Inch pitch threads |
- |
2 - 28 TPI (36 kinds) |
|||||
|
Module pitch threads |
- |
0.5 - 7 M (22 kinds) |
|||||
|
DP threads |
- |
4 - 56 TPI (36 kinds) |
|||||
|
FEEDING RANGE |
|
|
|||||
|
Range of longitudinal feeds |
mm/rev. |
0.05 - 0.7 |
|||||
|
Range of cross feeds |
mm/rev. |
0.025 - 0.35 |
|||||
|
MOTOR |
|
|
|||||
|
Main spindle motor |
HP |
15 / 20 (opt.) |
|||||
|
Coolant pump motor |
HP |
1/8 |
|||||
|
WEIGHT |
|
|
|||||
|
Net Weight |
kg |
3350 |
3600 |
4100 |
4600 |
5100 |
5700 |
Note:
We have the right to modify the specification or designs. If there are subjected to change without
prior notice.

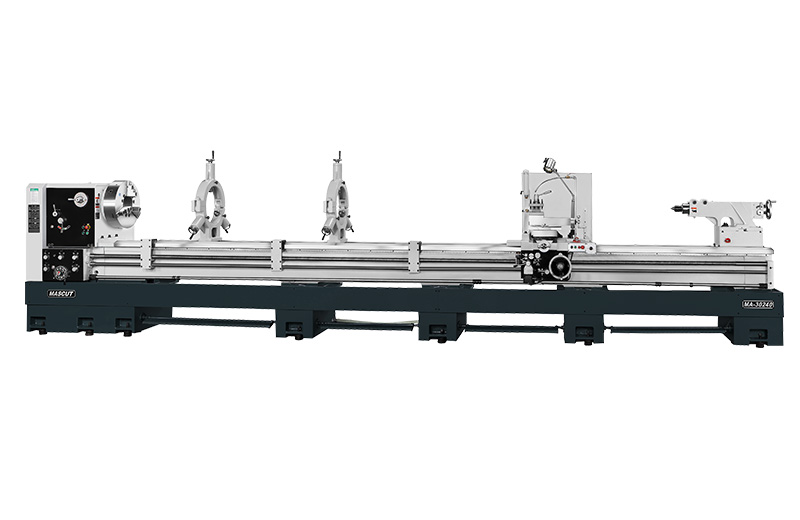

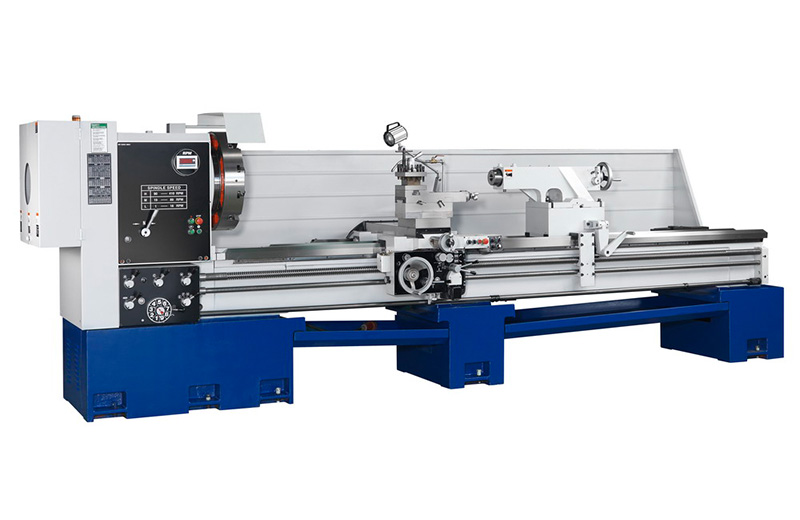

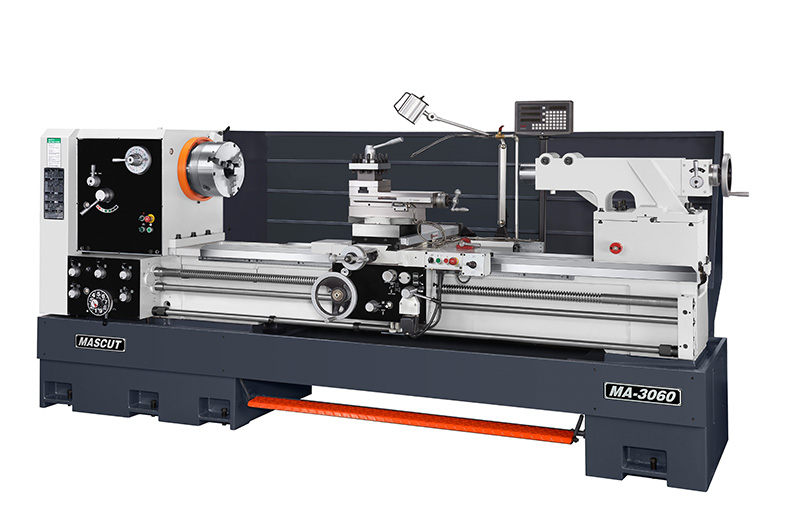

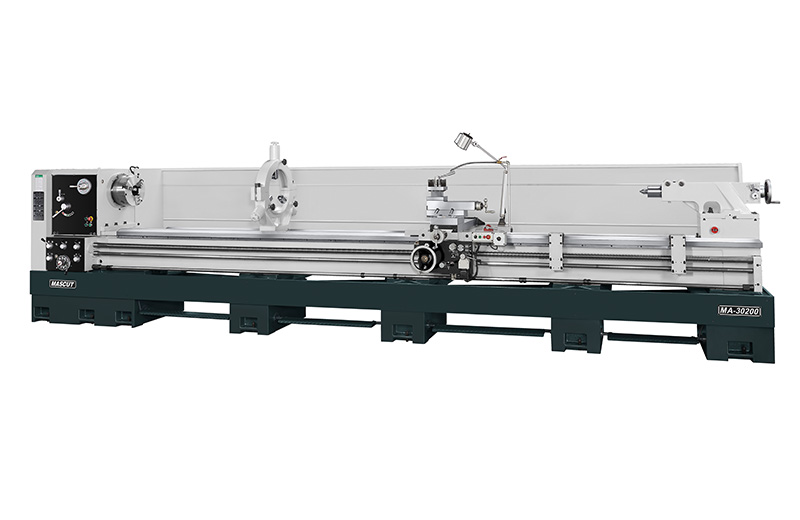

MA-3000(i) Series
ACCESSORIES
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Gap bed |
|
|
l Electromagnetic brakes |
l Digital Readout System |
|
|
l X / Z-axis rapid travel |
l 3-Jaw scroll chuck |
|
|
l 4-way tool post |
l 4-jaw independent chuck |
|
|
l Tail stock |
l Double chuck system |
|
|
l Center sleeve |
l Rear chuck adaptor |
|
|
l Dead center |
l Face plate |
|
|
l Tool box & tools |
l Quick change tool post |
|
|
l Independent Electrical Box |
l Taper attachment |
|
|
l Operation & Service Manual |
l Full length splash guard |
|
|
|
|
l Moving rear splash guard |
|
|
|
l Chuck guard |
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Work light |
|
|
|
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Micro-meter bed stopper |
|
|
|
l Turret type 5-position bed stopper |
|
|
|
l Rotating center |
|
|
|
|
