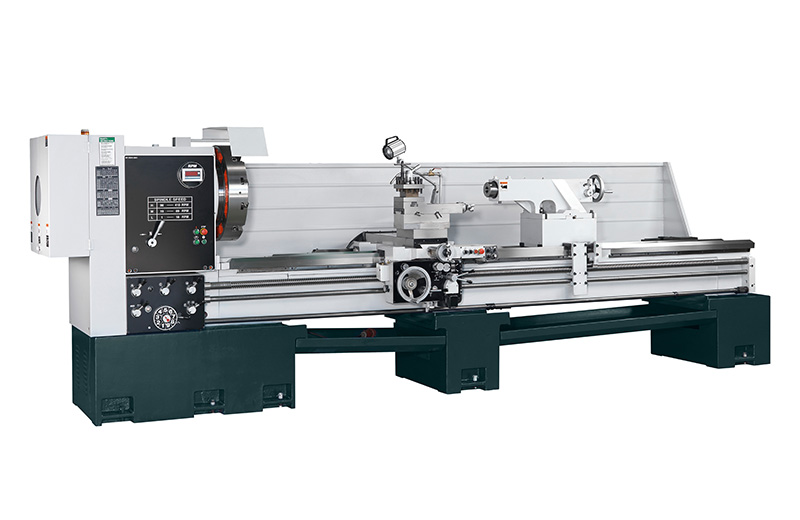

．The massive bed is a box type construction combined with extra wide bed ways, providing increased rigidity and stability.
．Bed ways are hardened and precision ground to achieve excellent wear-resistance without deformation.
．Highly smooth conventional lathe with the optimal.
．Integrates quality features the give you speed, precision and dependable performance year after year.
．Big-capacity series that is suitable for machining large workpiece.
．18-Steps spindle speed.
INVERTER COMTROLLED TYPE
．Better performance than conventional lathes.
．3-step speeds, each in variable speed change.
．Speed change by auto shifting.
．More convenient turning processing control & spindle speed shown on rpm meter.
．Braking controlled by quick inverter stop.
．Through cross feeding at fixed spindle speed, you´ll get the fine accuracy & speed for slide face of round plate (similar to CSS function).
．Through cross feeding for step turning, the spindle speed change can match and achieve rapid effect.
|
Description\MODEL |
Unit |

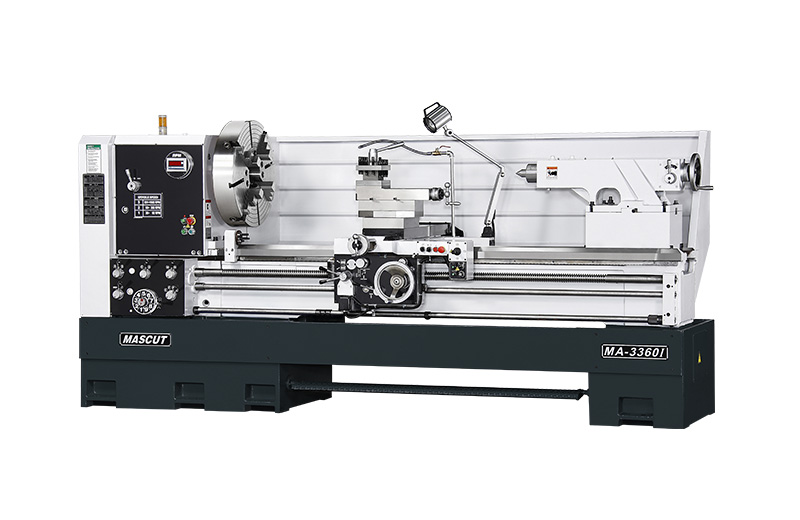

MA- 3360(i) |
MA- 3380(i) |
MA- 33120(i) |
MA- 33160(i) |

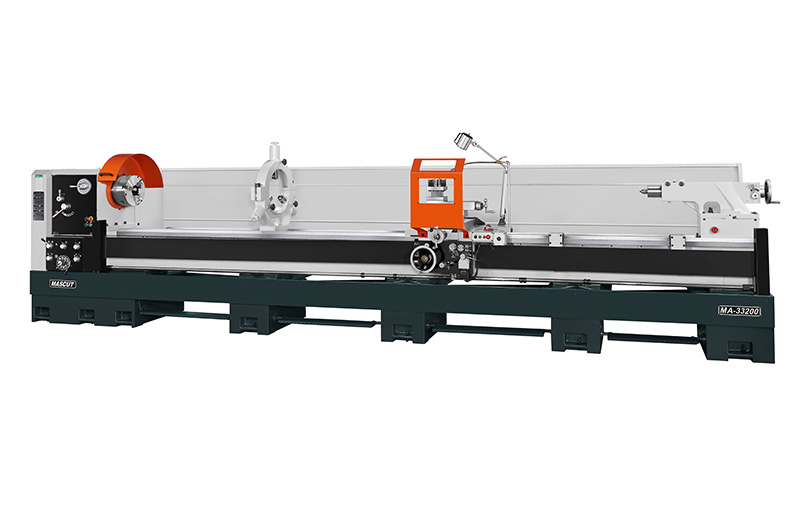

MA- 33200(i) |
MA- 33240(i) |
||
|
CAPACITY |
|
|
|||||||
|
Swing over bed |
mm |
840 |
|||||||
|
Swing over gap |
mm |
1080 (opt.) |
|||||||
|
Swing over cross slide |
mm |
590 |
|||||||
|
Distance between center |
mm |
1600 |
2100 |
3100 |
4100 |
5100 |
6100 |
||
|
Bed width |
mm |
450 |
|||||||
|
SPINDLE |
|
|
|||||||
|
Spindle bore |
mm |
Ø105(4”) |
Ø155(6”)opt. |
Ø230(9”)opt. |
Ø305(12")opt. |
||||
|
Spindle nose |
- |
A1-11 |
A2-11 |
A2-15 |
A2-20 |
||||
|
Spindle speeds ( 18 steps) |
rpm |
23~1293 |
13~690 |
5~440~5 |
- |
||||
|
Inverter type (variable 3 steps) |
20~1500 |
10~800 |
6~450 |
5~350 |
|||||
|
TRAVEL |
|
|
|||||||
|
Gross slide travel |
mm |
450 |
|||||||
|
Compound rest travel |
mm |
250 |
|||||||
|
TAILSTOCK |
|
|
|||||||
|
Tailstock spindle dia. |
mm |
105 |
|||||||
|
Tailstock spindle taper |
- |
MT#5 |
|||||||
|
MOTOR |
|
|
|||||||
|
Main spindle motor |
HP |
15 / 20 or 25(opt.) |
|||||||
Note : We have the right to modify the specification or designs. If there are subjected to change without prior notice.
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Gap bed |
|
|
l 4-way tool post |
l 3-Jaw scroll chuck |
|
|
l Tail stock |
l 4-jaw independent chuck |
|
|
l Electromagnetic brakes |
l Double chuck |
|
|
l X / Z-axis rapid travel |
l Face plate |
|
|
l Center sleeve |
l Work light |
|
|
l Dead center |
l Quick change tool post |
|
|
l Tool box & tools |
l Steady rest |
|
|
l Operation & Service Manual |
l Follow rest |
|
|
|
l Taper attachment |
|
|
|
l Micro-meter bed stopper |
|
|
|
l Turret type 5-position bed stopper |
|
|
|
l Digital Readout System |
|
|
|
l Full length splash guard |
|
|
|
l Moving rear splash guard |
|
|
|
l Chuck guard |
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Rotating center |
